POWER PLUGS AND JACKS
PATCH CORDS & MOLDED CABLE ASSEMBLIES
FAX: 773 792-2129
* Please visit the product pages on our website for the most up-to-date product information

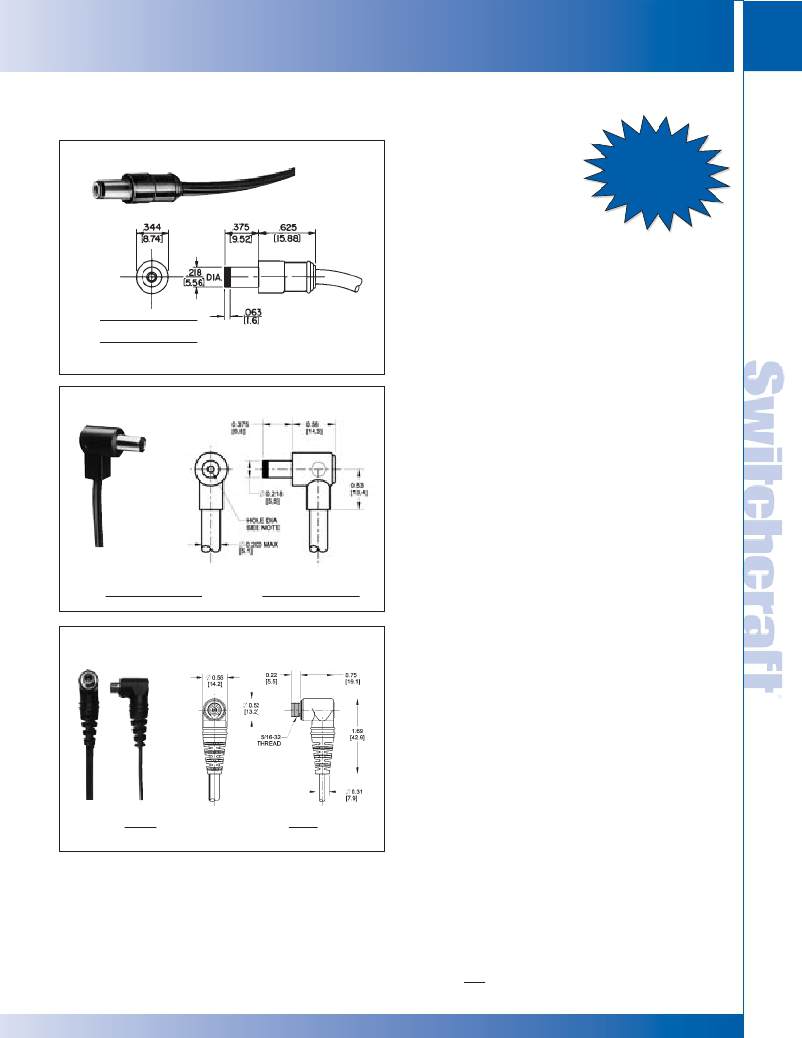

MOLDED CABLE ASSEMBLIES
With Power-Plug Battery Charger Plugs and Jacks
241
O c ut
w u g
P o e P l g
ST760, ST765 – Termination Code: 47, 48
SPECIFICATIONS
PLUG
Sleeve: Copper alloy, nickel-plated.
Pin: Silver-plated copper alloy.
Finger Insulator: Plastic.
Insulating Washers: Rigid plastic.
Sleeve Terminal: Steel, tin-plated.
Molded Handle: Plastic.
A sk A bo
u r Lo k in
r s
ST-760
.080-.084 DIA x .328 DEEP
(2.03-2.13) DIA x (8.33) DEEP
JACK
Bushing: Brass, nickel-plated copper alloy.
.099-.103 DIA x .328 DEEP
ST-765
(2.52-2.61) DIA x (8.33) DEEP
NOTE: ST760 is a molded version of S760; ST765 is a molded version of 765.
RA760, RA765 – Termination Code: 52, 53
Washers: Rigid plastic.
Pin, Springs, and Terminals: Plated copper alloy.
Housings: Thermoplastic.
CABLE
We will build assemblies on cable furnished by you,
.156" (3.96 mm) outside diameter, or on cable we purchase to
your specifications. Jacket must have temperature rating of
60° C minimum. Optional mold available for larger cable; order
as ST760L or ST765L.
DESIGN FEATURES
? ST760, ST760L, RA760 – accepts .08" (2.03 mm)
diameter pin.
? ST765, ST765L, RA765 – accepts .099" (2.54 mm)
diameter pin.
? RA712A:
? Mates with ST765, ST765L, and RA765.
RA-760
.080-.084 DIA x .328 DEEP
.(2.03-2.13) DIA x (8.33) DEEP
RA-765
.099-.103 DIA x .328 DEEP
.(2.52-2.61) DIA x (8.33) DEEP
? 2 conductor.
? Mounts in .313" diameter hole in panels up to .125" thick.
? Pin outside diameter is .108" - .112" split pin.
RA712A and RA722A
Termination Code: 71, 72
? Automatic switchover from AC to DC.
? RA722A:
? Mates with ST760, ST760L, and RA760.
? Pin outside diameter is .086" - .090" split pin.
? Molded-in cable clamp sleeve terminal (RA plugs only).
? For use with sockets similar to those used on portable
radios, tape recorders, television receivers and appliances
which feature AC adapters and/or battery chargers.
? Available with terminations of another ST760, RA760
stripped and tinned ends, spade lugs, alligator clips, and
more on special order.
? Jacks available with extended bushing for use with
Switchcraft locking power plugs 761K, 766K, S761K,
and S766K on special order.
*RA712A
.108" -.112" Split Pin
Collapses to fit .10" Diameter Pin
RA722A
.086" -.090" Split Pin
Collapses to fit .08" Diameter Pin
See ordering guide on next page.
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
SWITCHCRAFT, INC. 5555 N. Elston Ave. ? Chicago, IL 60630
